Internet Tip: Slyce and the V3 work best when using Google Chrome.
V3 Initial Setup
- Remove the device and cord from the box
Step 1: Boot up the Device
Depending on the initial configuration of the device, your device may stall on the following screen instead of initially going to settings:
If your device goes to this screen, simply hold down the "9" key until you hear two beeps then release. You should then see the following:
Select "1" for Production, which will then lead you to the following screen:
Step 2: Connect to Network
Note: The Vega3000 has the option to connect to the internet by wifi or ethernet port connection.
Option 1: Enable Ethernet Mode
To enable Ethernet mode, simply select option 1 "Ethernet" and make sure that you connect the device to an available ethernet port. No other configuration is needed.
Option 2: Enable WiFi Mode
Select a Network
With WiFi mode enabled, the terminal should automatically detect available WiFi networks and display them as shown here:
Select the WiFi network to be used and press the green enter button:
Enter the password for the network and click the green enter button. Repeatedly press a number on the keypad to cycle through upper and lower case letters listed on the key. Use the 0 key to cycle through symbols (such as !, $ etc). Selections will be entered after waiting for about one second. Press Enter when finished.
The terminal display will show the following once the terminal has connected to the network. If the Settings menu appears, simply press the Cancel button twice to exit the Settings menu and the Main Menu.
If the terminal has not yet been paired, you should see the following:
Once the terminal has been paired, you should see "Slyce" written across the screen. This means that the terminal is ready to process transactions.
Once the terminal has been connected to a WiFi network, it should automatically default to the selected network upon start-up. You should not have to re-enter the network password.
Switching Between WiFi Networks
To use a different network, you can either manually scan for the available networks, or you can choose to 'forget' the current network and let the terminal automatically scan for the available networks.
Step 3: Pairing to the payment plug-in
Generate and Enter Pairing Code
Open your Point of Sale access point:
- If using Slyce Gateway, click Quick Sale, enter an amount, and click Next.
- Click Chip in the payment plug-in.
Enter the generated six digit pairing code into the terminal using the keypad.
Once the terminal is paired, the Swipe, Dip, or Tap screen will be displayed.
Continue the transaction following the instructions below: Processing Transactions
Step 4: Processing Transactions
Run transactions by swiping, dipping, or tapping cards using the terminal.
- Click Chip
- If not yet completed, enter the pairing code into the terminal (click here for pairing instructions)
- Continue transaction by following prompts on the terminal.
- Swipe, Dip, or Tap to process a transaction.
- Once the transaction is approved, click More Options to print or email the receipt.
Step 5: Things to know about the device
Note: Your device uses a two way pairing system that stores a unique pairing code both in the device and in the computer/browser that you are using. If at any time your terminal or your computer/browser becomes disconnected you will need to repair both the terminal and the computer/browser.
Unpairing the terminal (from the computer/browser)
To unpair the terminal, click the unpair button pictured here:
Click OK to unpair the terminal.
The plug-in will show the following before resetting to the screen with the Chip icon. Click Chip to begin pairing the terminal again.
If the above instructions do not work, you can manually unpair the terminal:
- Hold the down/Wi-Fi key until you hear a beep. This will bring up the Main Menu.
- Press ‘1’ to open the Settings.
- Press the down key.
- Press ‘1’ to unpair the terminal. Press the Enter button to unpair.
Unpairing the computer/browser from terminal

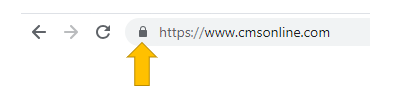

Press the "lock" symbol in the top left hand corner

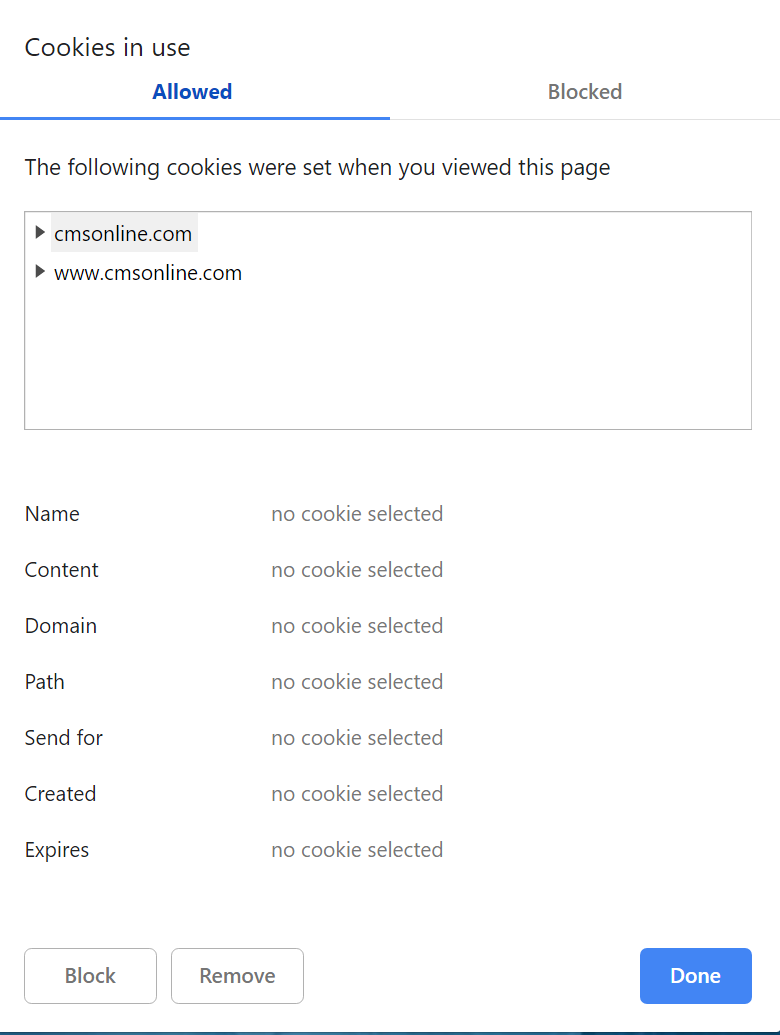

Press "Remove" all your available cookies, this will delete the cookie that your old terminal pairing code is stored in
Rescan for Networks
- Hold down the WiFi key (the down arrow) until you hear the terminal beep, then release.
- Press 1 for Settings.
- Press 3 to Rescan WiFi networks. Note that pressing 3 will automatically forget the current network.
- Select the network to be used and enter the password as before.
Forget the Current Network
- Hold down the WiFi key (the down arrow) until you hear the terminal beep, then release.
- Press 1 for Settings.
- Press 2 to Manage WiFi networks.
- Select the network to be forgotten by pressing the corresponding number key
- Press 2 to Forget. This will disconnect the terminal from the current network.
- The terminal will automatically re-scan for the available networks.
- Select the network to be used and enter the password as before.
How to unpair the V3 terminal
To unpair a V3 terminal follows these steps:
- Open the Main Menu by pressing and holding the "9" key until you hear the second *beep*
- Press 1 for Settings
- Choose "Unpair Device" from the listed choices
- Press the green "OK" key to confirm the unpairing
*Note: You will also need to unpair the terminal from your browser/software by hitting the power button next to the "Chip" icon.
Change WiFi Network
- To open the main menu, hold the 9 button until you hear the second beep
- Press 1 for Settings and then 3 for Rescan Wifi
- Choose the number associated with the desired network and then enter the Wifi password with the keypad
How to change the Connection Type
- Open the main menu by holding 9 until the second beep
- Press 1 for Settings and then 1 for Connection Type
- The current connection type is designated with an asterisk
- When Wifi is selected, 2 more options appear in the Settings menu
- Manage Wifi allows you to select the Wifi you want to connect to
- Rescan Wifi will search for wifi networks within range
How to run a transaction with the V3
- Enter a payment into your software
- In the Payment Plugin Window, click the "Chip" button
- The device will tell you to Swipe, Dip, or Tap
Change to/from Production or Sandbox Mode
- To open the main menu, hold the 9 button until you hear the second beep
- Press 1 for Settings and then Mode Select
- 1 for Production and 2 for Sandbox
- If the beaker icon is in the top left corner you are in Sandbox Mode
For assistance with troubleshooting, please refer to the link below or contact CMS Support:
CMS Support
support@cmsonline.com
801-623-4000 Option 2
