To charge the terminal, plug in via USB. If plugging into a computer, you may see the following message. Note that there is no need for a driver to be installed. Therefore, disregard any error message about the driver not being installed properly.

If the terminal is set to Bluetooth mode, use the following instructions to enable WiFi mode.

Press and hold the WiFi/down arrow button until you hear the device beep twice.

You may also enable WiFi mode from the Main Menu.

Press 1 for Settings
Press 1 for Connection Type
Press 1 to enable WiFi mode.

Select a Network

With WiFi mode enabled, the terminal should automatically detect available WiFi networks and display them as shown here:

Select the WiFi network to be used:

Enter the password for the network and click the green enter button. Repeatedly press a number on the keypad to cycle through upper and lower case letters listed on the key. Use the 0 key to cycle through symbols (such as !, $ etc). Selections will be entered after waiting for about one second. Press Enter when finished.

The terminal display will show the following once the terminal has connected to the network. If the Settings menu appears, simply press the Cancel button twice to exit the Settings menu and the Main Menu.

If the terminal has not yet been paired, you should see the following:

Once the terminal has been paired, you should see "Slyce" written across the screen. This means that the terminal is ready to process transactions.

Once the terminal has been connected to a WiFi network, it should automatically default to the selected network upon start-up. You should not have to re-enter the network password.

Step 2: Pairing to the Payment Plug-in

Generate and Enter Pairing Code

Open your Point of Sale access point:
- If using Slyce Gateway, click Quick Sale, enter an amount, and click Next.
Click Chip in the payment plug-in.

Enter the generated six digit pairing code into the terminal using the keypad.

Once the terminal is paired, the Swipe, Dip, or Tap screen will be displayed.

Continue the transaction following the instructions below: Processing Transactions

Step 3: Processing Transactions

Run transactions by swiping, dipping, or tapping cards using the terminal.

Click Chip
If not yet completed, enter the pairing code into the terminal (click here for pairing instructions)
Continue transaction by following prompts on the terminal.
Swipe, Dip, or Tap to process a transaction.
Once the transaction is approved, click More Options to print or email the receipt.

IMPORTANT: Things to know about the device

Note: Your device uses a two way pairing system that stores a unique pairing code both in the device and in the computer/browser that you are using. If at any time your terminal or your computer/browser becomes disconnected you will need to repair both the terminal and the computer/browser.

Unpairing the terminal (from the computer/browser)

To unpair the terminal, click the unpair button pictured here:

Click OK to unpair the terminal.

The plug-in will show the following before resetting to the screen with the Chip icon. Click Chip to begin pairing the terminal again.

If the above instructions do not work, you can manually unpair the terminal:

Hold the down/Wi-Fi key until you hear a beep twice. This will bring up the Main Menu.
Press ‘1’ to open the Settings.
Press the down key.
Press ‘1’ to unpair the terminal. Press the Enter button to unpair.

Unpairing the computer/browser from terminal

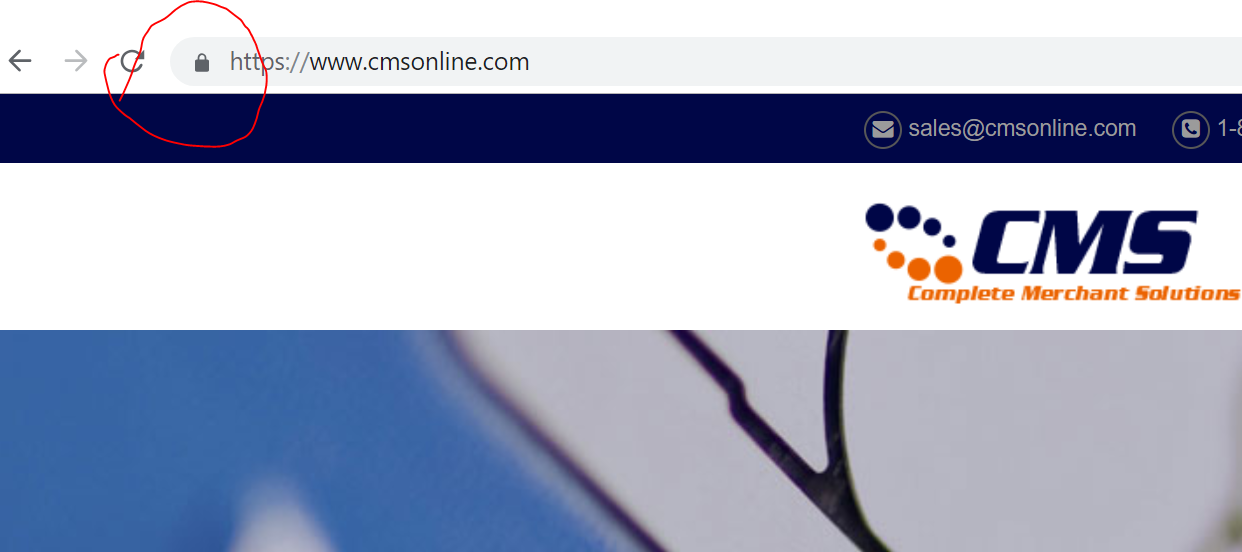

Press the "lock" symbol in the top left hand corner

Press "Remove" all your available cookies, this will delete the cookie that your old terminal pairing code is stored in

Rescan for Networks

Hold down the WiFi key (the down arrow) until you hear the terminal beep twice, then release.
Press 1 for Settings.
Press 3 to Rescan WiFi networks. Note that pressing 3 will automatically forget the current network.
Select the network to be used and enter the password as before.

Forget the Current Network

Hold down the WiFi key (the down arrow) until you hear the terminal beep twice, then release.
Press 1 for Settings.
Press 2 to Manage WiFi networks.
Select the network to be forgotten by pressing the corresponding number key
Press 2 to Forget. This will disconnect the terminal from the current network.
The terminal will automatically rescan for the available networks.
Select the network to be used and enter the password as before.

Article ID: 36000132916
